LXT connected to the middle sleeve type star elastic coupling (JB / T 10466-2004)

● LXT then the middle sleeve type star elastic coupling of the scope and performance characteristics

The coupling is made of engineering plastic as a flexible element, suitable for connecting the two coaxial axis of the drive shaft, with compensation for the relative deviation of the two axes, cushioning, shock absorption, wear resistance, to adapt to the general, transmission torque 20- 35000.NM, operating temperature -35- +80 degrees Celsius and interchange with the German ROTEX coupling. The polyurethane elastomer is limited by the convex claw block to avoid external deformation due to the internal deformation and centrifugal force generated by the impact. The concave surface of the pawl makes the surface pressure on the involute tooth very small and the teeth are overloaded , Teeth still do not wear or deformation.

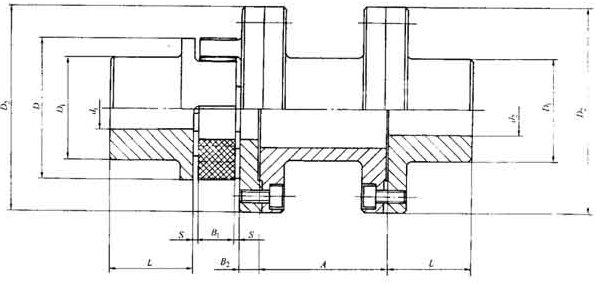

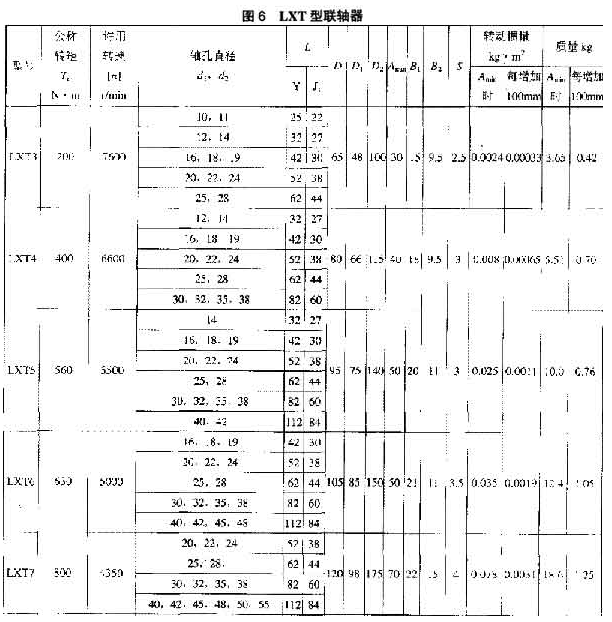

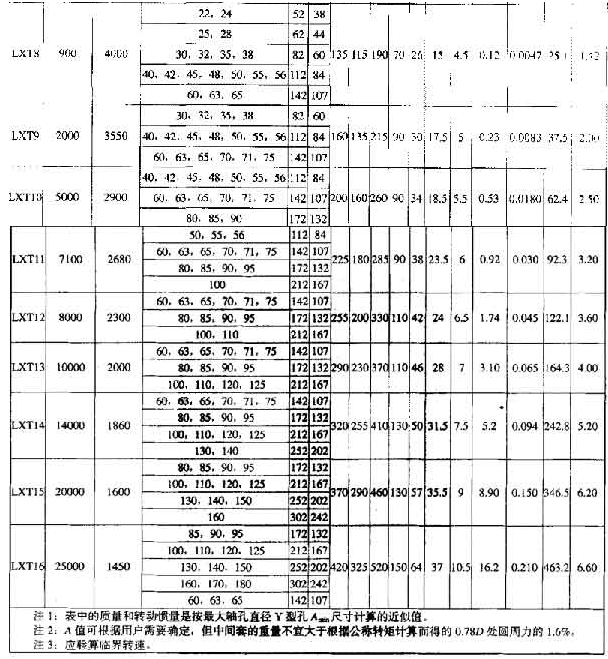

LXT then the middle of the star star elastic coupling basic performance parameters and the main size
